G-Mouse GPS Receiver

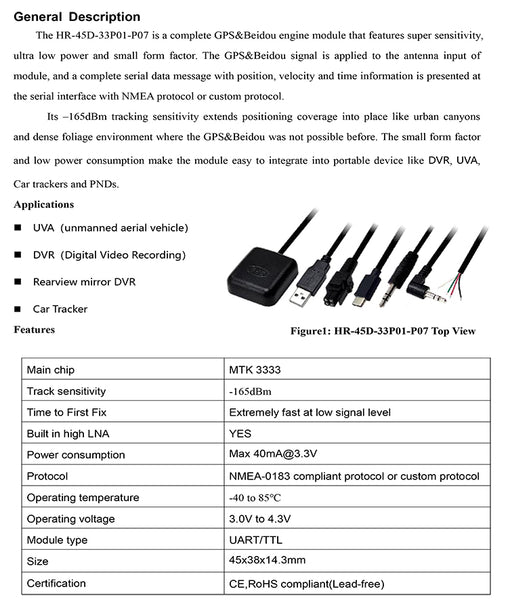

General Description

The HR-45D-33P01-P07 is a complete GPS&Beidou engine module that features super sensitivity,ultra low power and small form factor. The GPS&Beidou signal is applied to the antennainput ofmodule, and a complete serial data message with position, velocity and time information is presentedatthe serial interface with NMEA protocol or custom protocol.

Its –165dBm tracking sensitivity extends positioning coverage into place like urbancanyonsand dense foliage environment where the GPS&Beidou was not possible before. The small formfactorand low power consumption make the module easy to integrate into portable device like DVR, UVA,Car trackers and PNDs.

Applications

  • UVA（unmanned aerial vehicle）
  • DVR（Digital Video Recording）
  • Rearview mirror DVR
  • Car Tracker

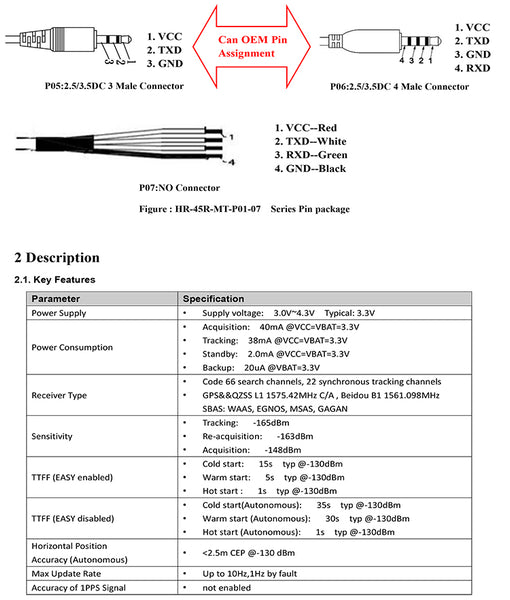

Features

  • Main chip: MTK 3333
  • Track sensitivity: -165dBm
  • Time to First Fix: Extremely fast at low signal level
  • Built in high LNA: YES
  • Power consumption: Max 40mA@3.3V
  • Protocol: NMEA-0183 compliant protocol or customprotocol
  • Operating temperature: -40 to 85℃

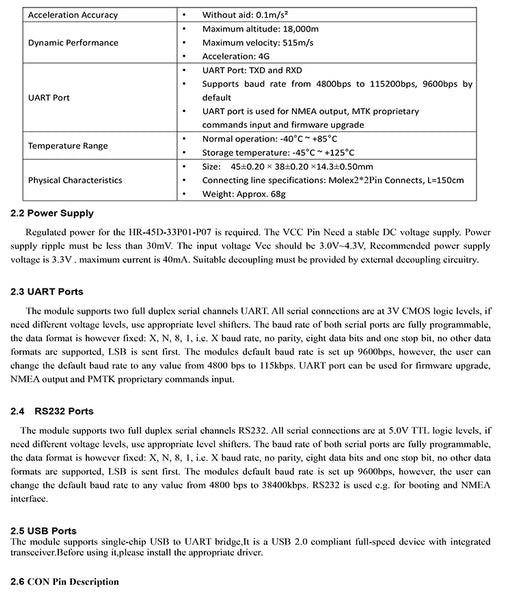

  • Operating voltage: 3.0V to 4.3V

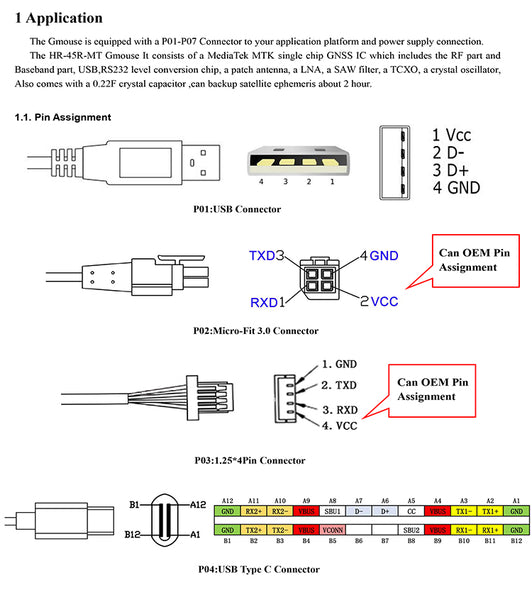

  • Module type: UART/TTL

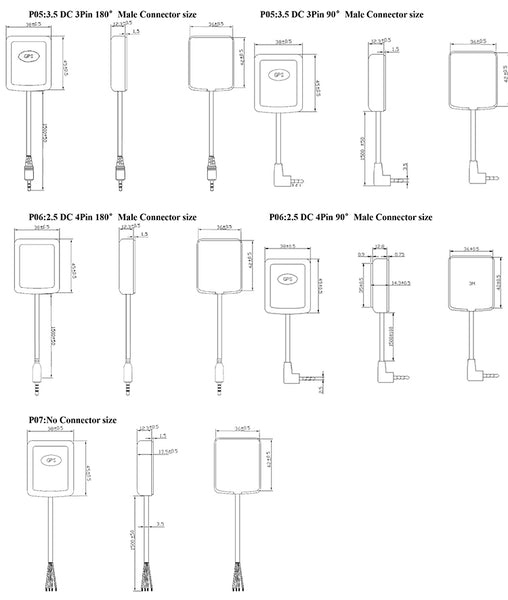

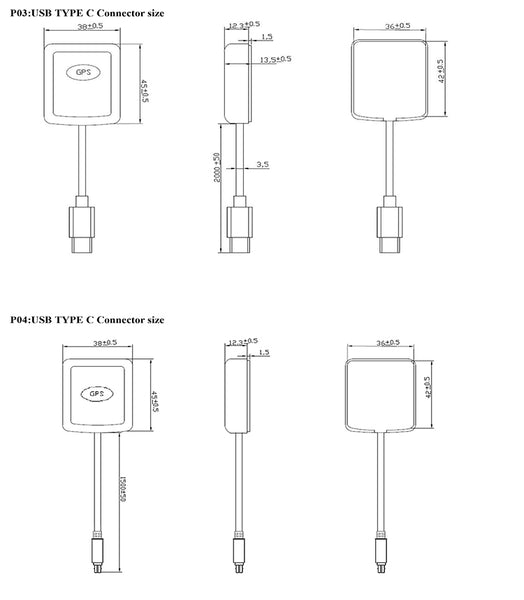

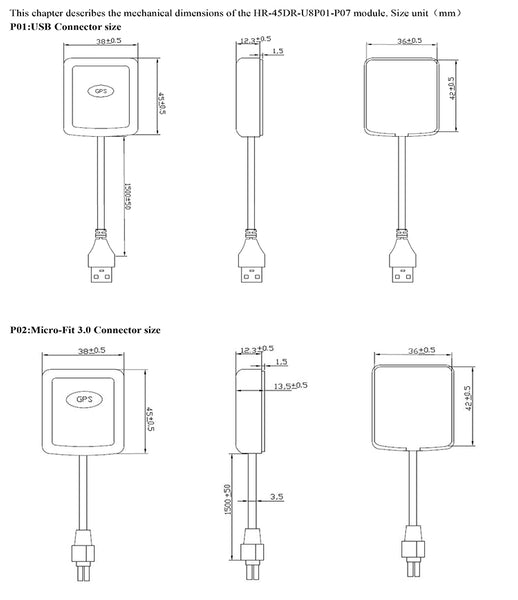

  • Size: 45x38x14.3mm
  • Certification: CE,RoHS compliant(Lead-free)
