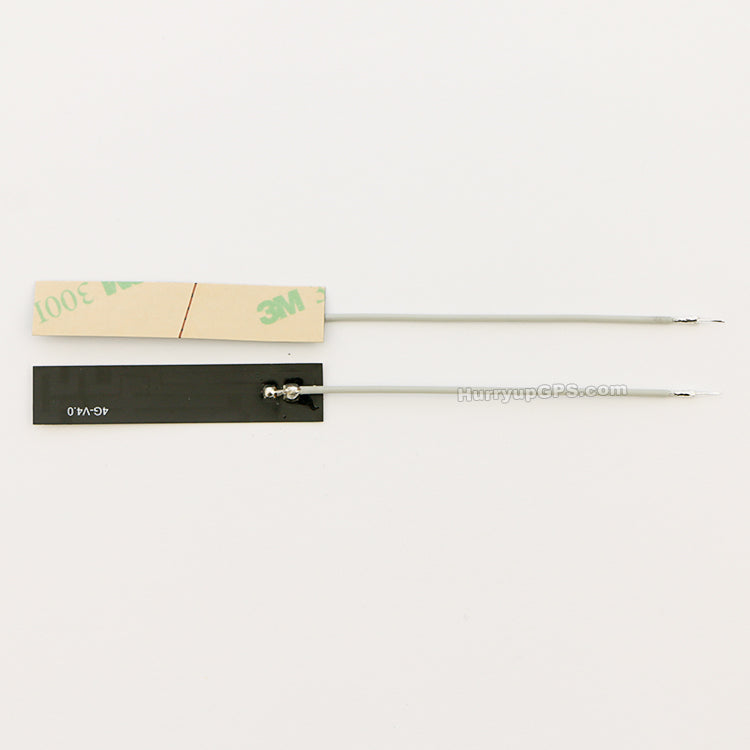

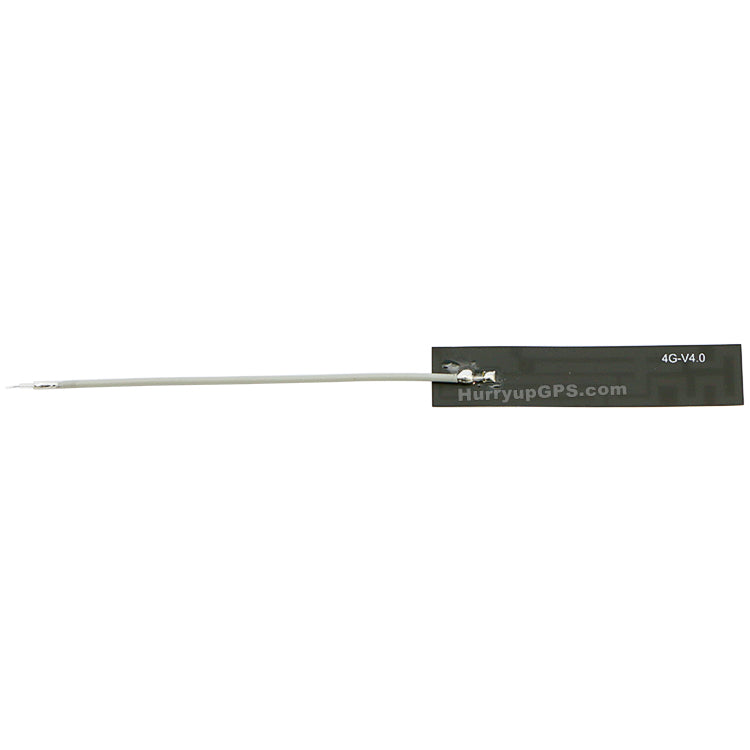

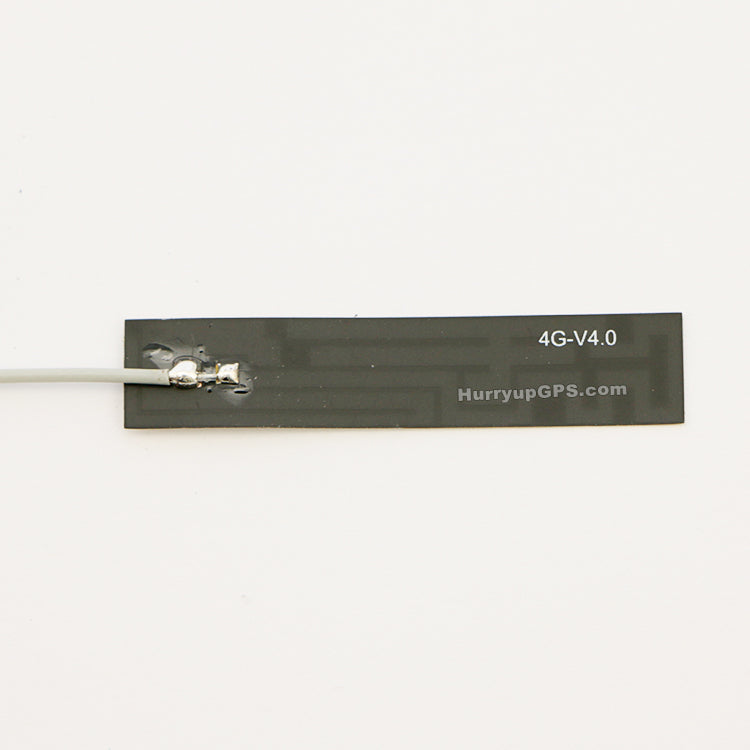

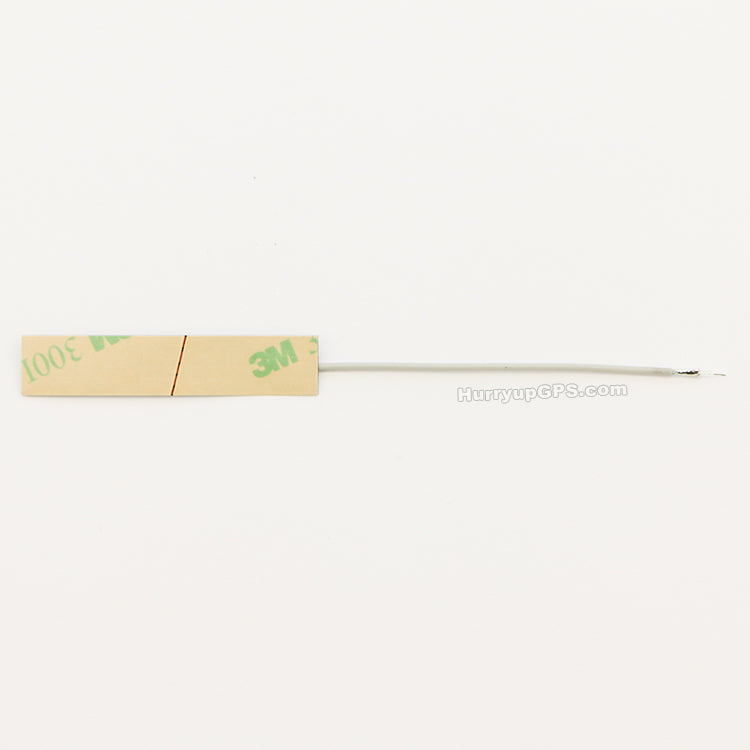

44.6x9mm FPC 4G LTE Antenna 800-960MHz 1710-2690MHz

(1) Physical characteristics

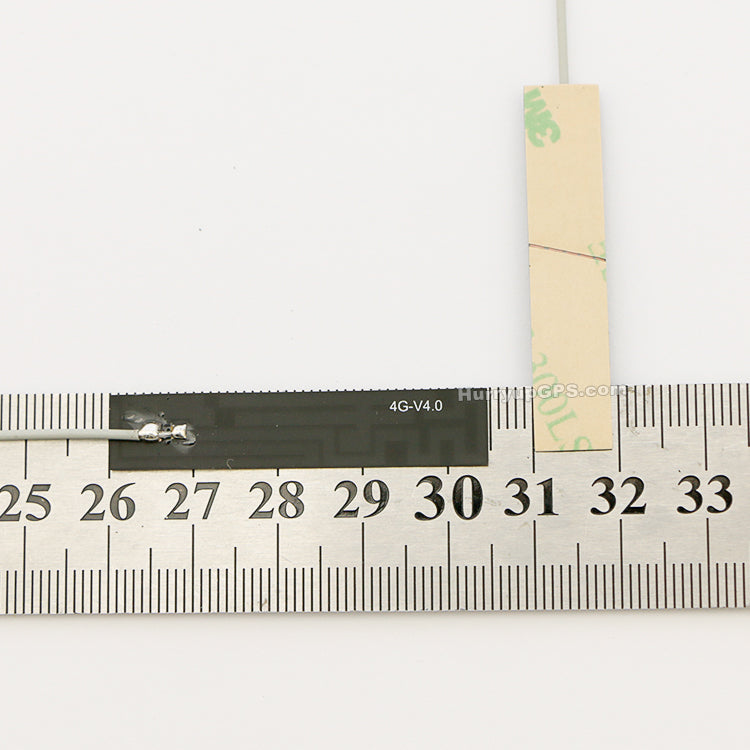

● Size: 44.6×9mm
● Cable Length: 100mm
● Connector: IPEX-1(MHF1)  or Customize

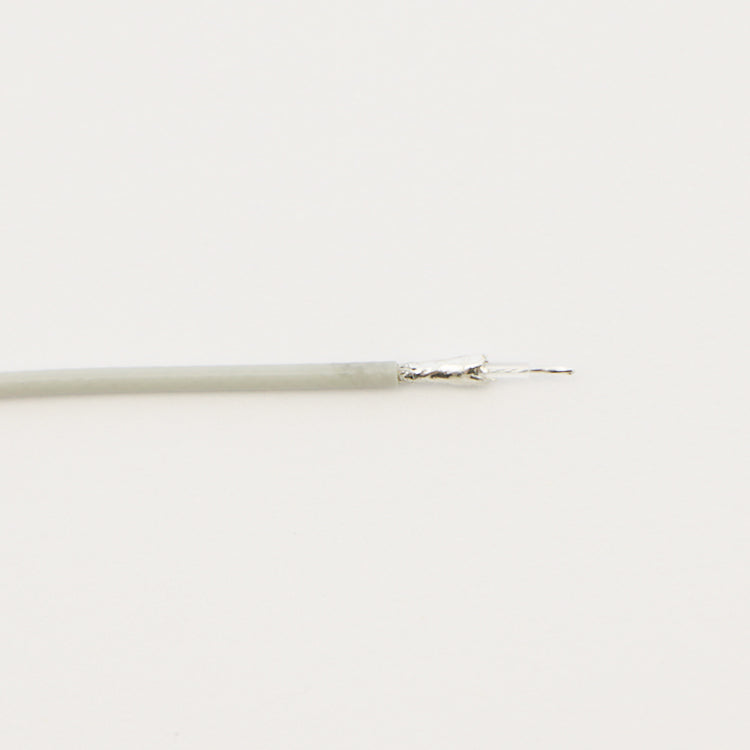

● Cable Type: RF1.13 (Gray)
● Antenna Material: FPC
● Antenna Solder Mask: Black Oil
● Working Temp: -30℃~75℃
● Working Humidity: 10%~95%
● Storage Temp: -30℃~75℃
● Storage Humidity 10%~95%

(2) Electrical parameters

● Frequency(MHz): 800~960/1710~2690
● Impedance 50Ω
● Gain(peak) 2dBi
● V.S.W.R. ≤2.0
● Polarization: Linear Polarization
